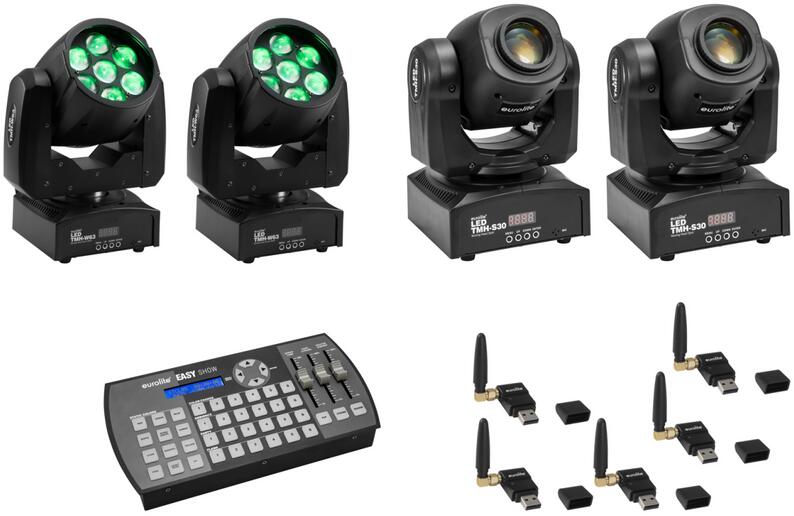

EUROLITE Set 2x LED TMH-W63 + 2x LED TMH-S30 + USB QuickDMX + Easy Show

EUROLITE Set 2x LED TMH-W63 + 2x LED TMH-S30 + USB QuickDMX + Easy Show

Ezt a terméket egyik partnerünk sem forgalmazza. Kérjük, válasszon az alábbi termékek közül!

Amik még érdekelhetik

Termékleírás
Weight 18,14 kg
EUROLITE LED TMH-W63 Moving Head Zoom Wash
Power supply 100-240 V AC, 50/60 Hz
Power consumption 100 W
IP classification IP20
Power connection Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Fuse 5 x 20 mm, T 2 A Fuse replaceable
Lamp type LED lamp
LED 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement Exact positioning (16 bit resolution) 220°
Max. PAN movement Exact positioning (16 bit resolution) 540°
Equipment Zoom motor-driven
DMX channels 15
DMX input 3-pin XLR (M) mounting version
DMX output 1 x 3-pin XLR (F) mounting version
Cooling Cooling fan
Control Stand-alone; Light J Software; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; EASY SHOW
Beam angle 6 - 29°
Beam angle (1/2 peak) 6 - 18°
Beam angle (1/10 peak) 11 - 29°
Illuminance in Lux (lx) R red 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx
G green 1m 15691 lx, 3m: 2179 lx, 6m: 549 lx
B blue 1m 2497 lx, 3m: 406 lx, 6m: 103 lx
CW 1m 17115 lx, 3m: 2398 lx, 6m: 605 lx
All 1m 40258 lx, 3m: 5714 lx, 6m: 1432 lx
Housing color Black
Display type 4 digits 7-segment LED display
Dimensions Width: 21,0 cm
Depth 16,0 cm
Height 29,5 cm
Noise classification Class 2 (slight noise)
Legal specifications
Ecodesign regulation yes
Special product Not designed for household room illumination
intended use show effect lighting
EUROLITE LED TMH-S30 Moving Head Spot
Color temperature 8000K
Color generation Color wheel 7 dichroic filters plus open
Gobos Gobo wheel with rotating gobos, 7 gobos and open
Available storage media USB devices
Carrier frequency 2,4 GHz
Modulation GFSK
Parallel mode Max. 6 transmitter
Color Black

Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!

Az itt látható egyedi termékleírások és képek a DJSoundLight Kft tulajdonát képezik.
Washlight with 7 intense 9 W LEDs (4in1) and motorized zoomEUROLITE LED TMH-W63 Moving Head Zoom Wash
  • 7 high-power 9 W RGBW LEDs (4in1)
  • Positioning within 540° PAN and 220° TILT
  • Stepless RGBW color mixture
  • Built-in auto and music show programs
  • Motion macros
  • Strobe effect with variable speed
  • Strobe effect by random generator
  • Dimmer
  • Motor ized zoom with 6-29° beam angle
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Additional rubber feet when the spot shall be positioned on the floor
  • LED: 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 15 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
  • Is in Light J Software; EASY SHOW already preprogrammed
  • Flicker-free projection
EUROLITE LED TMH-S30 Moving Head SpotCompact Moving Head Spot with 30 W LED, gobos and color wheel
  • One highpower 30 W COB LED in cold white
  • Positioning within 540° PAN and 180° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Built-in auto and music show programs
  • Strobe effect with adjustable speed
  • Electronic dimmer
  • Manual focus
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
  • Switch-mode power supply for operation between 100 and 240 volts
  • Additional rubber feet when the spot shall be positioned on the floor
  • LED: 1 x COB (chip-on-board) 30 W CW
  • Color wheel 7 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for exchanging gobos without tools
  • Can be operated in 10; 12 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; QuickDMX via USB (optional); Sound to light via Microphone; Master/slave function
  • Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW already preprogrammed
  • Flicker-free projection
  • Effect: Single Beam; Strobe effect
EUROLITE EASY ShowProgrammed DMX controller for over 200 spotlights from EUROLITE
  • Easy-to-use DMX controller and DMX recorder
  • Designed for DMX beginners with 200 programmed fixtures
  • DMX recording function for your own projects, ideal for installations or rental companies
  • Ideal for colored LED spotlights, KLS systems, moving lights and lighting effects
  • No programming required, simply connect your spotlights and get started
  • All spotlights can be freely combined to a show
  • 12 color schemes and 24 chases directly available
  • Controls for overall brightness, running speed, fade time and strobe effect
  • Data storage on USB flash drives
  • QuickDMX connector for wireless DMX connection
  • Backlit LCD display
  • Compact desktop console
  • Includes USB flash drive, USB plug-in power adapter and mounting brackets
  • A list of all preset devices is available at www. steinigke. de
  • Controlling by DMX; Sound to light via Microphone
EUROLITE QuickDMX USB Wireless Transmitter/ReceiverWireless miniature DMX transceiver 2.4 GHz, phantom powered
  • User-friendly USB plug with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e. g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver to be used as transmitter or receiver
  • Requires 5 V phantom power for operation
  • 2.4 GHz ISM band - license-free worldwide
  • Can receive and process up to 512 DMX channels
  • Can transmit up to 512 DMX channels
  • Controlling by DMX; QuickDMX built-in
