Termékleírás
Weight 23,62 kg
EUROLITE LED PT-100/32 Pixel DMX Tube
Power supply 100-240 V AC, 50/60 Hz
Power consumption 30 W
IP classification IP20
Power connection Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output 1 x P-Con (gray), mounting version
Lamp type LED lamp
LED 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate 20 Hz
DMX channels 3; 5; 8; 48; 96
DMX input 3-pin XLR (M) mounting version
DMX output 3-pin XLR (F) mounting version
Cooling Passive convection
Control Stand-alone; DMX; Sound to light via Microphone; Master/slave function; EUROLITE LED PC-Control 512 software
Beam angle 120°
Beam angle (1/2 peak) 120°
Housing color Black
Display type 4 digits 7-segment LED display
Dimensions Length: 99,9 cm
Width 5,9 cm
Height 15,3 cm
Noise classification Class 0 (no noise at all)
Legal specifications
Ecodesign regulation yes
Special product Not designed for household room illumination
intended use show effect lighting
EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software
USB port USB 2.0, Typ Mini USB (F) mounting version
Color Black
PC connect Via USB
Depth 9 cm
Network connection Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version
Housing design (19") 48.3 cm rack installation

Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!

Az itt látható egyedi termékleírások és képek a DJSoundLight Kft tulajdonát képezik.

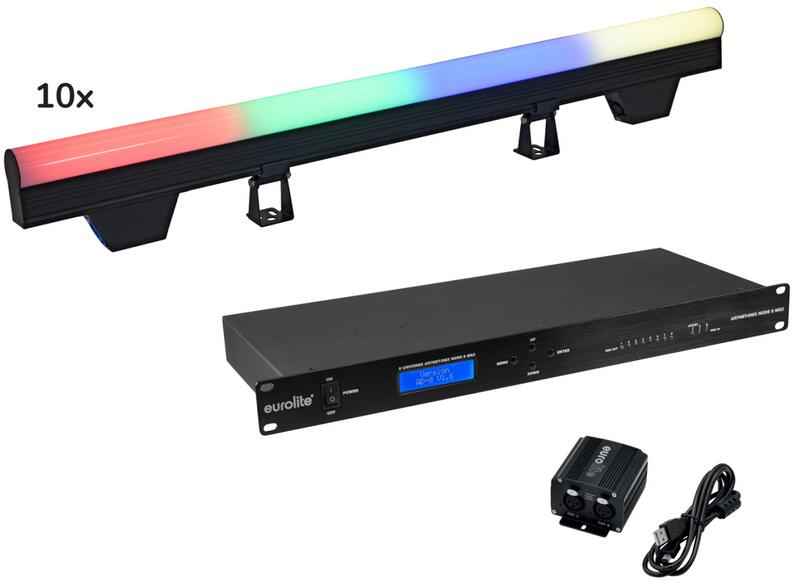

10x DMX-controllable pixel rail with RGB color mixing incl. USB interface and Art-Net interfaceEUROLITE LED PT-100/32 Pixel DMX TubeDMX controlled pixel tube with RGB color mixing
  • Tube with 96 high-power RGB LEDs (3in1) for washlight effects
  • Subdivided into 32 pixels (illumination units ŕ 3 LEDs) which can be controlled individually by DMX
  • Functions: static colors, automatic color change, internal programs with variable speed, dimmer settings
  • Built-in auto and music show programs
  • Direct color selection for 17 preset colors
  • DMX and power terminals intelligently designed for easy wiring
  • Addressing and setting via control panel with 4-digit LED display
  • Metal housing with swivel mounting brackets
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
  • Can be operated in 3; 5; 8; 48; 96 CH mode
  • The device is cooled by passive convection
  • Controlling by Stand-alone; DMX; Sound to light via Microphone; Master/slave function
  • Is in EUROLITE LED PC-Control 512 software already preprogrammed
EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control SoftwareUSB interface for 2 DMX universes with 3 lighting control softwares
  • USB interface for 2 DMX universes (1024 channels) Pixel Control
  • Incl. 3 x lighting control software for different applications (download)
  • LED PC Control (architectural lighting)
  • DMX Control (show lighting)
  • Pixel Control (pixel mapping and video mixing)
  • Compatible with Windows and Mac OS X (requires Open GL 4.0 at least)
  • Suitable for all RGB and RGBW LED fixtures and LED panels
  • 64 Art-Net universes with 512 channels each on Ethernet
  • 32,768 individual channels or 10,922 RGB pixels
  • High DVI resolution output (1280 x 1024 pixels)
  • Supports touch screen controls
  • Minimum configuration required: Windows / Mac OS, 2 GHz CPU, 8 GB RAM memory, 2 GB RAM graphic card, 500 MB hard disk, 1 USB port (interface dongle), 1 Ethernet port (Art-Net out)
  • Software available for free download at www. eurolite. de
  • Can transmit up to 1024 DMX channels
  • Controlling by DMX
  • The device can be connected via USB to the PC
EUROLITE Art-Net/DMX Node 8 MK2Art-Net interface for output of 8 universes on XLR
  • Distributes Art-Net data to 8 DMX512 universes (4096 channels)
  • Parallel DMX input possible (1024 channels)
  • 8 optically isolated XLR plugs (3-pin) for DMX output
  • 2 XLR jacks (3-pin) for DMX input
  • Variable data routing capabilities for all DMX outputs
  • 2 x Ethernet in/through port
  • Serial connection possible
  • User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
  • LED indication for functions
  • Splitter operation possible
  • Rack installation 1 U
  • Controlling by ArtNet
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • (19") 48.3 cm rack installation
