SQUARE

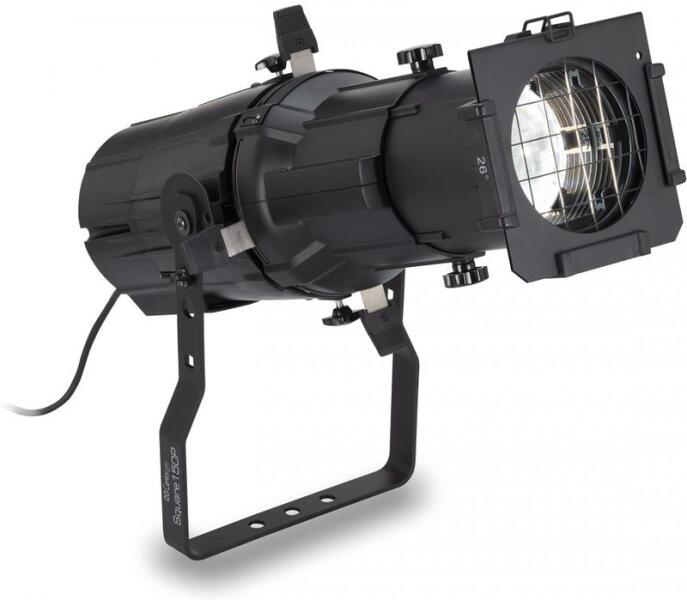

Centolight SQUARE 150P is a professional LED Profile with 26° beam (also available optional 19° lens tube) designed for theatres and fixed installations where high LED chip reliability and warm white lighting (approx. 3.200K) are required. The light source is a 150W CITILED® LED with CRI =90 to allow excellent color rendering, especially in indoor venues like TV studios, theaters and museums. Great attention is paid to quality of dimmer control and chip temperature, to minimize the consequences of using LEDs instead of traditional lamps. The cooling system uses high precision fans in order to keep noise within 25dB @ 1m. The 4 beam-shaping shutter system allows both radial and angled adjustment of the beam. The fixture is equipped with a compartment for gobos and manual iris (both optional), as well as the front color-frame holder (included).
LED Profile Spot with 26° Beam (19° optional)
Light Source: 150W Warm-White (3200K) CITILED® LED with over 50,000h lifetime
Radial/Angled Blade-Framing System
Smooth 16-bit Dimmer
Flicker-Free Operation
Low-Noise Cooling System
Gobos/Iris Slot (ptional gobo and iris)
Color Frame Holder (included)

Light Source: 1 x 150W Warm White Citiled® LED
Chip Life: Over 50,000h
CCT (Color Temperature): 3100±150K
Luminous Flux: 3120lux/3m, 1170lux/5m, 780lux/10m
CRI: =90
Refresh Rate: Over 15.000Hz (Flicker-Free)
4 Blade-Framing System adjustable for radial and angle positioning
Beam Angle: 26° Lens (19° Optional)
16-Bit Smooth Linear Dimming
Strobe: 0-20Hz
Cooling System: Quite Fan (under 25dB @1m)
DMX Channel: 2-Channels (RDM Included)
Control Modes: DMX, Master-Slave, Manual Dimming
LCD Display
DMX In/Out: 3-pin XLR
IP rate: IP33
Power Socket: Powercon Input/Output
Voltage:100~240V 50/60Hz
Max Power Consumption: 170W
Working Temperature: -30÷55°C
Housing Surface Temperature: 40°C~55°C
Max. Fixture Size (WxDxH): 590 x 266 x 266 mm – 23.29 x 10.47 x 10.47 in (C-bracket included)
Net Weight: 6,5 kg – 14.33 lbs.
Packing Size (WxDxH): 640 x 280 x 280 mm – 25.20 x 11.02 x 11.02 in
Packing Weight: 8,2 kg – 18.08 lbs.
Accessories: 19° Lens Tube, Metal Gobo Holder, Iris
